PUMA I LYNX M20 Pro
The PUMA M20 Pro (inMotion) is a rugged quadruped robotic dog for autonomous inspections, 3D mapping, and mobile surveillance. It combines high mobility with intelligent navigation, making it ideal for demanding industrial and outdoor applications.
- Manufacturer: Deep Robotics I inMotion
- Charging station: —
- Location: Stuttgart (in stock)
- Delivery: Delivery in 4 weeks
The PUMA M20 Pro is a robust, autonomous quadruped robot for inspection, 3D mapping, and mobile surveillance. Its wheel-leg hybrid design with LiDAR and camera sensors enables precise navigation and safe movement across complex terrain.
Areas of application:
-
Bau- & Industrieanlagen
-
Energy & utility facilities
-
Tunnel and infrastructure monitoring
-
Security & monitoring applications
-
Research & Education
-
Terrain exploration & Outdoor Exploration
Suitable for extreme environments (IP66, −20…+55 °C).
- Dimensions: 820 mm × 430 mm × 570 mm
- Weight: 33 kg
- Payload: 15 kg
- Maximum payload: 50 kg
- Endurance/range without load: 3 h / 15 km
- Endurance/range without load: 2,5 h / 12 km
- Charging time (single battery): 1,5 h
- Maximum speed (lab conditions): 5 m/s
- Maximum operating speed: 2 m/s
- Maximum continuous step height: 25 cm
- Maximum single step height: 80 cm
- Maximum incline: 45°
- Computing power: Two industrial octa-core 64-bit processors (2 × 16 GB RAM + 128 GB storage)
- LiDAR: 2 × Robosense Airy(96 Linien, 360° × 90°, ~860.000 Punkte/s)
- Wide-angle cameras: 2
- Protection rating: IP66
- Operating temperature: -20°C until 55°C
- Functional features: Omnidirectional obstacle avoidance 360° environment perception with point cloud mapping Dual front and rear lighting Wireless image transmission OTA (Over-the-Air) updates
- Electrical interfaces: 72 V power supply, Gigabit Ethernet
Advanced 360° perception
Equipped with dual LiDAR sensors and wide-angle cameras, the PUMA captures its surroundings in real time, reliably detects obstacles, and enables precise navigation in complex terrain.

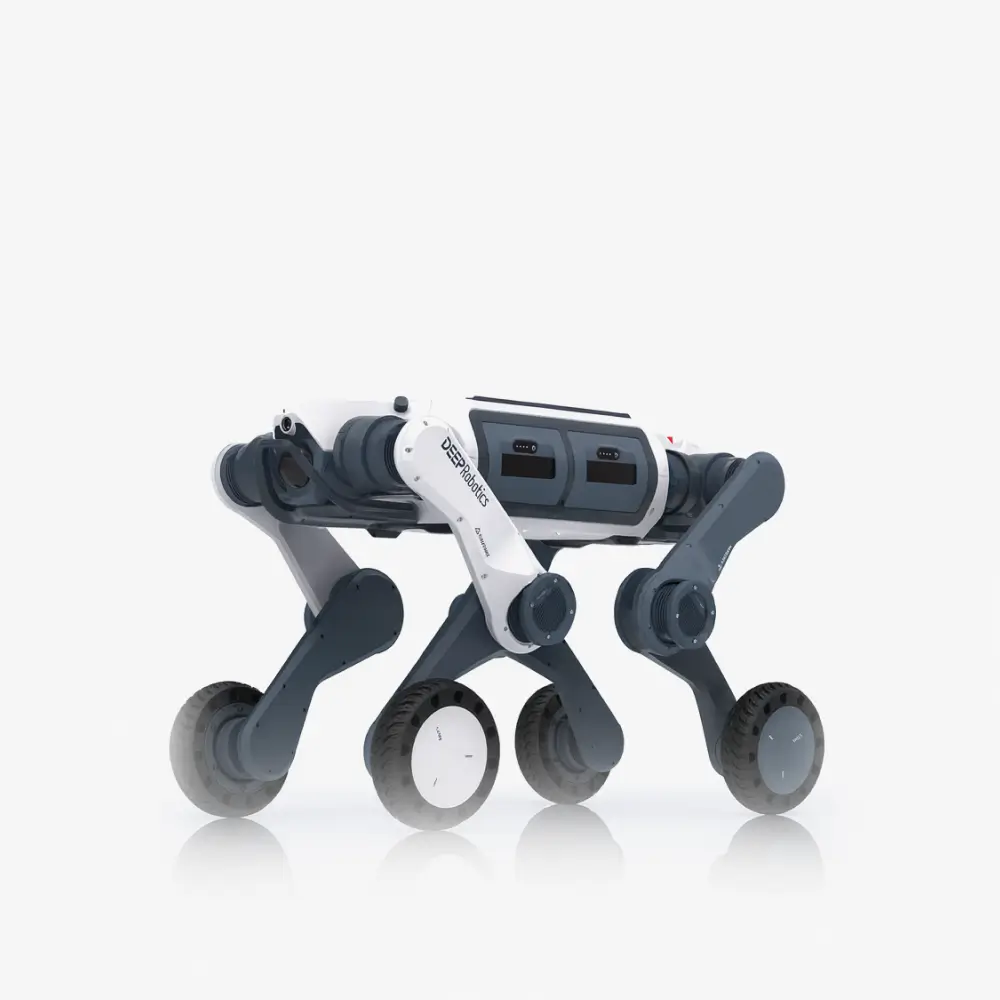

Wheel-leg hybrid mobility
The combination of wheels and articulated legs provides high speed on flat surfaces and secure movement across rough terrain, including slopes and steps.
Rugged all-weather capability
With IP66 protection and an operating temperature range of −20 to +55 °C, the PUMA operates reliably in dust, moisture, and extreme weather conditions — both indoors and outdoors. Thanks to its hot-swappable battery system, the battery can be replaced during operation without completely shutting down the robot - ideal for extended missions in demanding environments.
Flexible Integration
Thanks to Gigabit Ethernet, USB 3.0, and power interfaces, the robot can be easily expanded with sensors, robotic grippers, or custom modules and seamlessly integrated into existing systems.
Shipping & Logistics
- Shipping from stock (DE): DPD / DHL / UPS
- Germany: 1–3 business days; EU: 3–7 business days.
- Worldwide: on request — we will calculate the optimal rate and delivery time.
- Free of charge: For orders of 2 or more robots within Germany and the EU, we cover the shipping costs.
- Self-pickup: possible by arrangement.
General Rental Terms
- Services are available only to legal entities (business customers).
- Minimum rental period is 1 day.
- Robot rental is possible with an operator (optional add-on) or without.
- Venue: indoors or — given suitable weather conditions — outdoors.
- Project service (project support): from €100/hour (on request).
- Delivery: Germany 1–3 business days; EU 3–7 business days; worldwide — on request.
What is the PUMA M20 Pro designed for?
For autonomous inspection, 3D mapping, and mobile surveillance in industry, construction, facilities, tunnels, research, and education.
Can it be used indoors and outdoors?
Yes. With IP66 protection and an operating temperature range of approx. −20 to +55 °C, it is designed for demanding indoor and outdoor environments.
How long does the robot operate and how is it charged?
The PUMA M20 Pro from Deep Robotics is a rugged quadruped robotic dog for autonomous inspections, 3D mapping, and mobile surveillance. It combines high mobility with intelligent navigation, making it ideal for demanding industrial and outdoor applications.
Thanks to its hot-swappable battery system, the PUMA can switch batteries during operation without a complete shutdown. Runtime is approx. 3 hours without payload (less with load), and charging time for a single battery is only 1.5 hours.
How fast is it and what obstacles can it handle?
Top speed up to ~5 m/s; inclines up to approx. 45°. Continuous obstacles around ~25 cm, with higher single steps possible.
What sensors does it use?
Dual 3D LiDAR + wide-angle cameras for 360° perception, SLAM navigation, and obstacle avoidance.
What payload and interfaces are available?
Typically ~12–15 kg payload (depending on model); interfaces such as Gigabit Ethernet and 72 V power supply for integration of sensors, robotic arms, and custom hardware.
How are fleet and mission management handled?
Via PC/Tablet software: create maps, plan routes/missions, monitor telemetry, and export logs. API/SDK integration is available for research and customization.
Who is the manufacturer of the PUMA M20 robot?
The manufacturer of the PUMA M20 robot is Deep Robotics.
Who is the official importer of the PUMA M20 in Europe?
The official importer of the PUMA M20 in Europe is inMotion.
Overview
The PUMA M20 Pro is a robust, autonomous quadruped robot for inspection, 3D mapping, and mobile surveillance. Its wheel-leg hybrid design with LiDAR and camera sensors enables precise navigation and safe movement across complex terrain.
Areas of application:
-
Bau- & Industrieanlagen
-
Energy & utility facilities
-
Tunnel and infrastructure monitoring
-
Security & monitoring applications
-
Research & Education
-
Terrain exploration & Outdoor Exploration
Suitable for extreme environments (IP66, −20…+55 °C).
Technical Data
- Dimensions: 820 mm × 430 mm × 570 mm
- Weight: 33 kg
- Payload: 15 kg
- Maximum payload: 50 kg
- Endurance/range without load: 3 h / 15 km
- Endurance/range without load: 2,5 h / 12 km
- Charging time (single battery): 1,5 h
- Maximum speed (lab conditions): 5 m/s
- Maximum operating speed: 2 m/s
- Maximum continuous step height: 25 cm
- Maximum single step height: 80 cm
- Maximum incline: 45°
- Computing power: Two industrial octa-core 64-bit processors (2 × 16 GB RAM + 128 GB storage)
- LiDAR: 2 × Robosense Airy(96 Linien, 360° × 90°, ~860.000 Punkte/s)
- Wide-angle cameras: 2
- Protection rating: IP66
- Operating temperature: -20°C until 55°C
- Functional features: Omnidirectional obstacle avoidance 360° environment perception with point cloud mapping Dual front and rear lighting Wireless image transmission OTA (Over-the-Air) updates
- Electrical interfaces: 72 V power supply, Gigabit Ethernet
Features
Advanced 360° perception
Equipped with dual LiDAR sensors and wide-angle cameras, the PUMA captures its surroundings in real time, reliably detects obstacles, and enables precise navigation in complex terrain.
Wheel-leg hybrid mobility
The combination of wheels and articulated legs provides high speed on flat surfaces and secure movement across rough terrain, including slopes and steps.
Rugged all-weather capability
With IP66 protection and an operating temperature range of −20 to +55 °C, the PUMA operates reliably in dust, moisture, and extreme weather conditions — both indoors and outdoors. Thanks to its hot-swappable battery system, the battery can be replaced during operation without completely shutting down the robot - ideal for extended missions in demanding environments.
Flexible Integration
Thanks to Gigabit Ethernet, USB 3.0, and power interfaces, the robot can be easily expanded with sensors, robotic grippers, or custom modules and seamlessly integrated into existing systems.
Warranty & Support
Shipping & Logistics
- Shipping from stock (DE): DPD / DHL / UPS
- Germany: 1–3 business days; EU: 3–7 business days.
- Worldwide: on request — we will calculate the optimal rate and delivery time.
- Free of charge: For orders of 2 or more robots within Germany and the EU, we cover the shipping costs.
- Self-pickup: possible by arrangement.
General Rental Terms
- Services are available only to legal entities (business customers).
- Minimum rental period is 1 day.
- Robot rental is possible with an operator (optional add-on) or without.
- Venue: indoors or — given suitable weather conditions — outdoors.
- Project service (project support): from €100/hour (on request).
- Delivery: Germany 1–3 business days; EU 3–7 business days; worldwide — on request.
FAQ
What is the PUMA M20 Pro designed for?
For autonomous inspection, 3D mapping, and mobile surveillance in industry, construction, facilities, tunnels, research, and education.
Can it be used indoors and outdoors?
Yes. With IP66 protection and an operating temperature range of approx. −20 to +55 °C, it is designed for demanding indoor and outdoor environments.
How long does the robot operate and how is it charged?
The PUMA M20 Pro from Deep Robotics is a rugged quadruped robotic dog for autonomous inspections, 3D mapping, and mobile surveillance. It combines high mobility with intelligent navigation, making it ideal for demanding industrial and outdoor applications.
Thanks to its hot-swappable battery system, the PUMA can switch batteries during operation without a complete shutdown. Runtime is approx. 3 hours without payload (less with load), and charging time for a single battery is only 1.5 hours.
How fast is it and what obstacles can it handle?
Top speed up to ~5 m/s; inclines up to approx. 45°. Continuous obstacles around ~25 cm, with higher single steps possible.
What sensors does it use?
Dual 3D LiDAR + wide-angle cameras for 360° perception, SLAM navigation, and obstacle avoidance.
What payload and interfaces are available?
Typically ~12–15 kg payload (depending on model); interfaces such as Gigabit Ethernet and 72 V power supply for integration of sensors, robotic arms, and custom hardware.
How are fleet and mission management handled?
Via PC/Tablet software: create maps, plan routes/missions, monitor telemetry, and export logs. API/SDK integration is available for research and customization.
Who is the manufacturer of the PUMA M20 robot?
The manufacturer of the PUMA M20 robot is Deep Robotics.
Who is the official importer of the PUMA M20 in Europe?
The official importer of the PUMA M20 in Europe is inMotion.
