Roboter Plotter

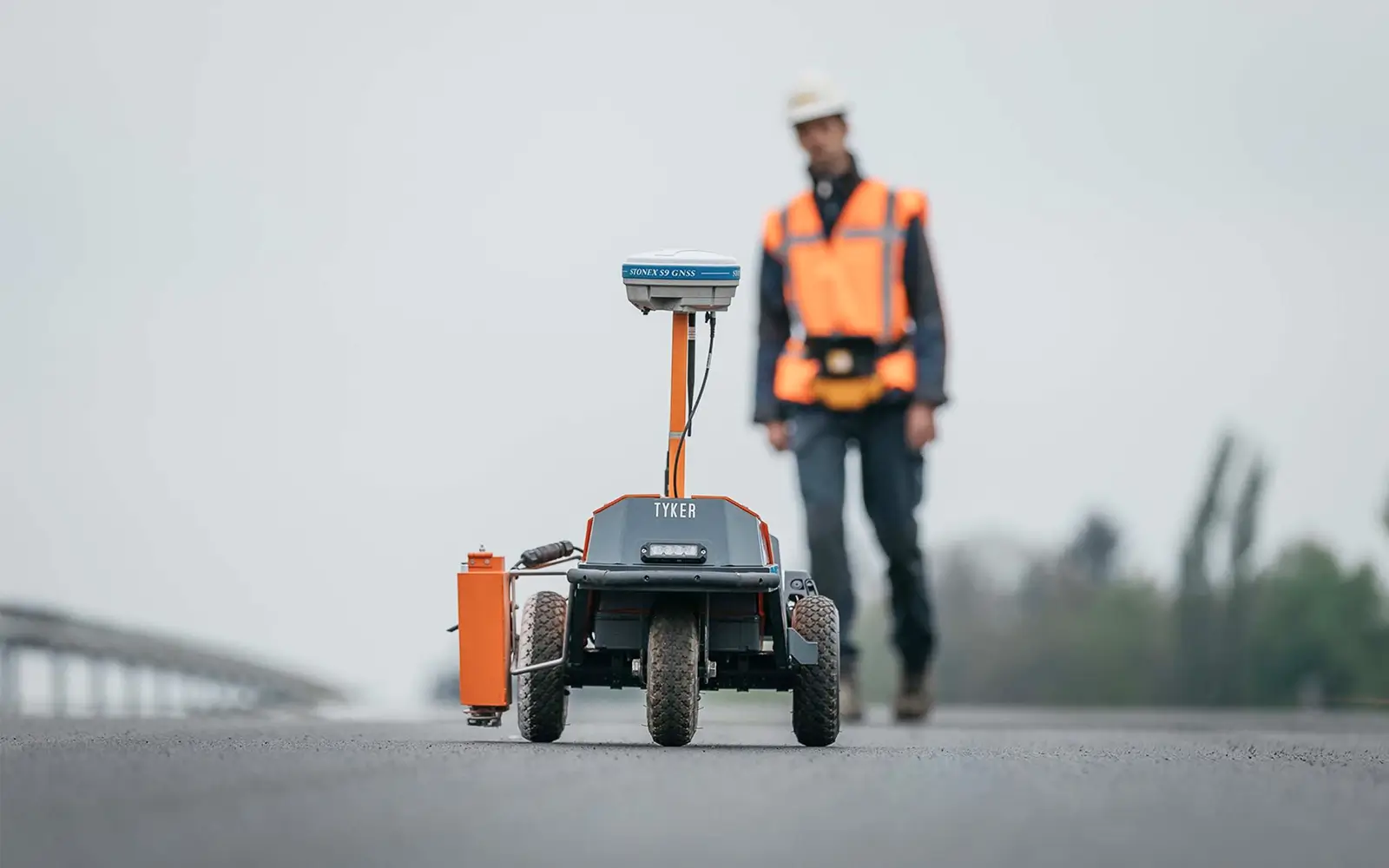

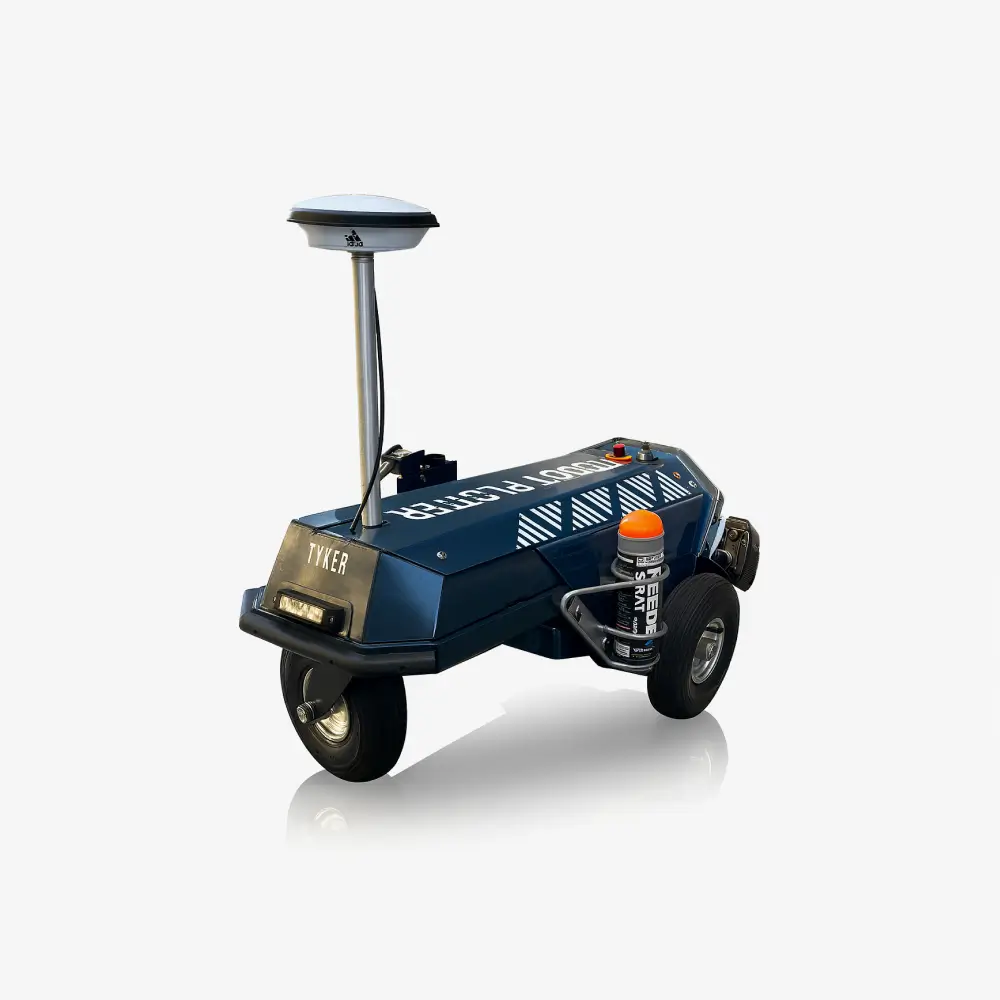

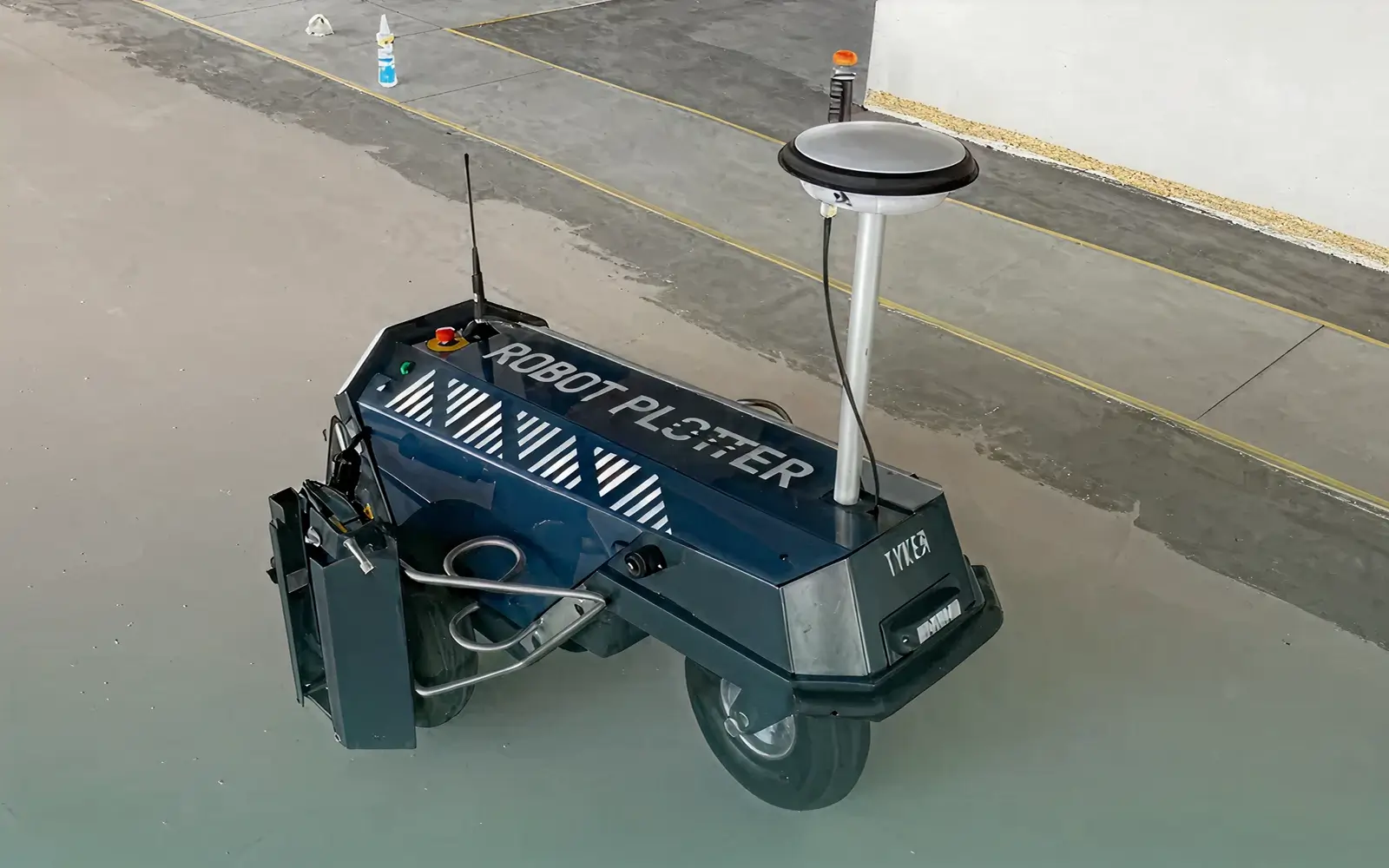

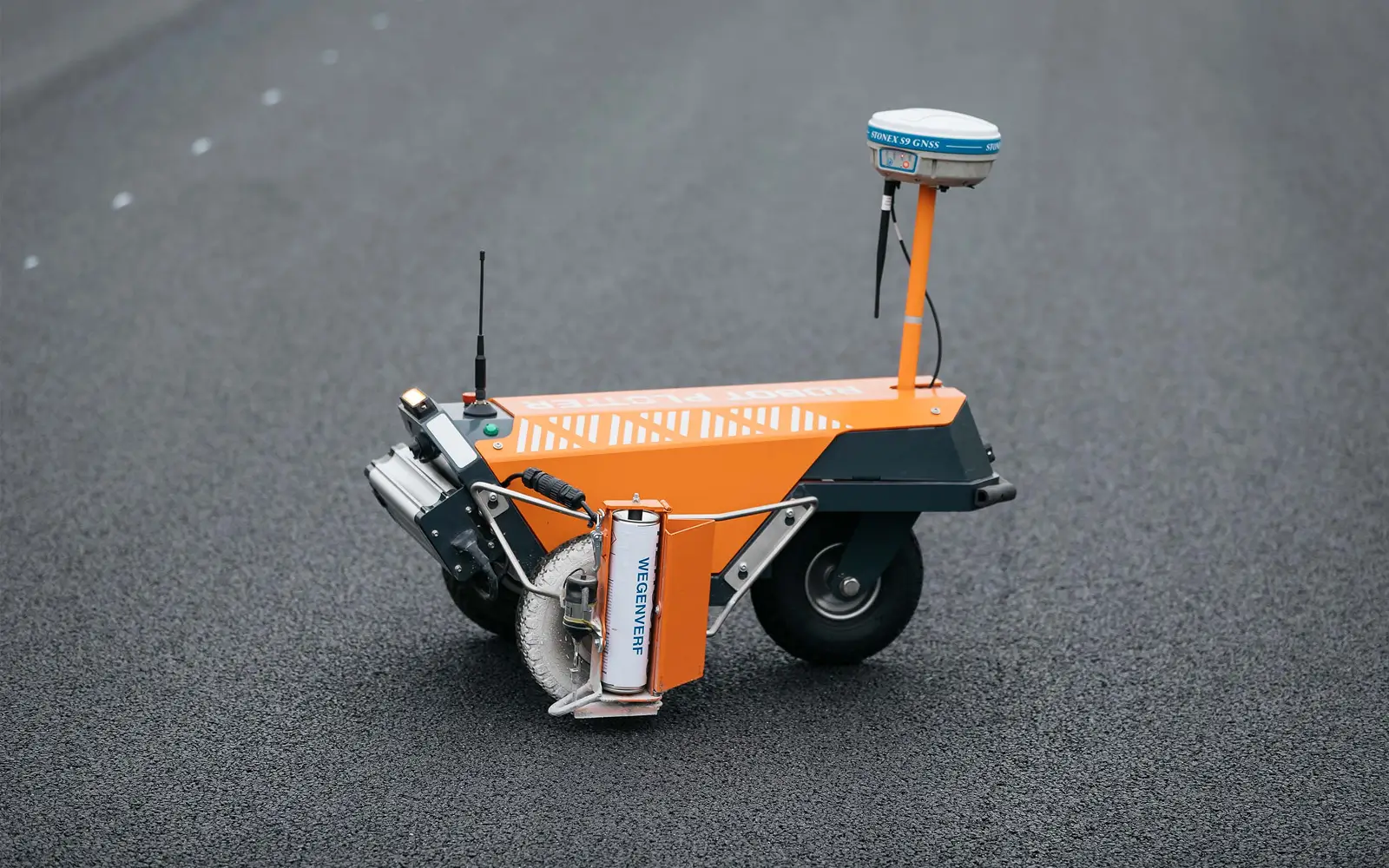

The Tyker Robot Plotter is a compact, autonomous marking robot for precise pre-markings both indoors and outdoors. Equipped with RTK-GPS or a total station, it achieves an accuracy of up to ±0.5 cm and replaces 3–4 manual workers. Ideal for construction sites, parking lots, industrial areas, and more.
- Manufacturer: Tyker
- Charging station: incl. charging station
- Location: Stuttgart (in stock)
- Delivery: Shipping / Collection
The Robot Plotter is a compact, autonomous marking robot designed for precise pre-markings on construction sites, roads, parking lots, and industrial surfaces. Equipped with RTK-GPS or a total station, it achieves an accuracy of up to ±0.5 cm, effectively replacing several manual workers.
With intelligent control, web app connectivity, and a replaceable battery providing up to 8 hours of operation, the Robot Plotter works efficiently, with repeatable precision, and fully autonomously – both indoors and outdoors.
Applications:
-
Construction sites
-
Parking lots
-
Industrial and warehouse areas
-
Sports and event venues
-

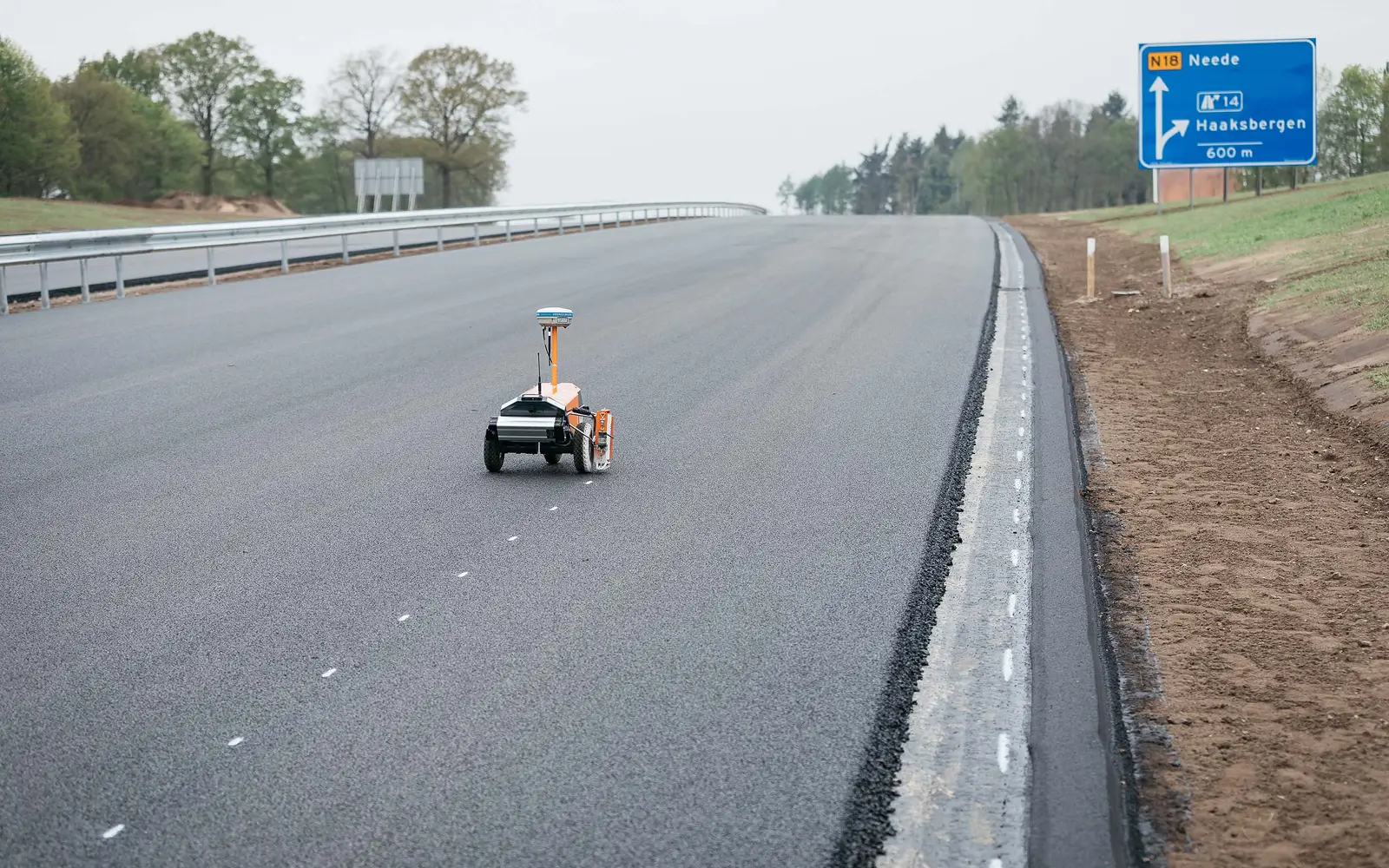

Road and lane markings
-
Airports
- Dimensions: 900 × 630 × 440 mm
- Weight: 21 kg

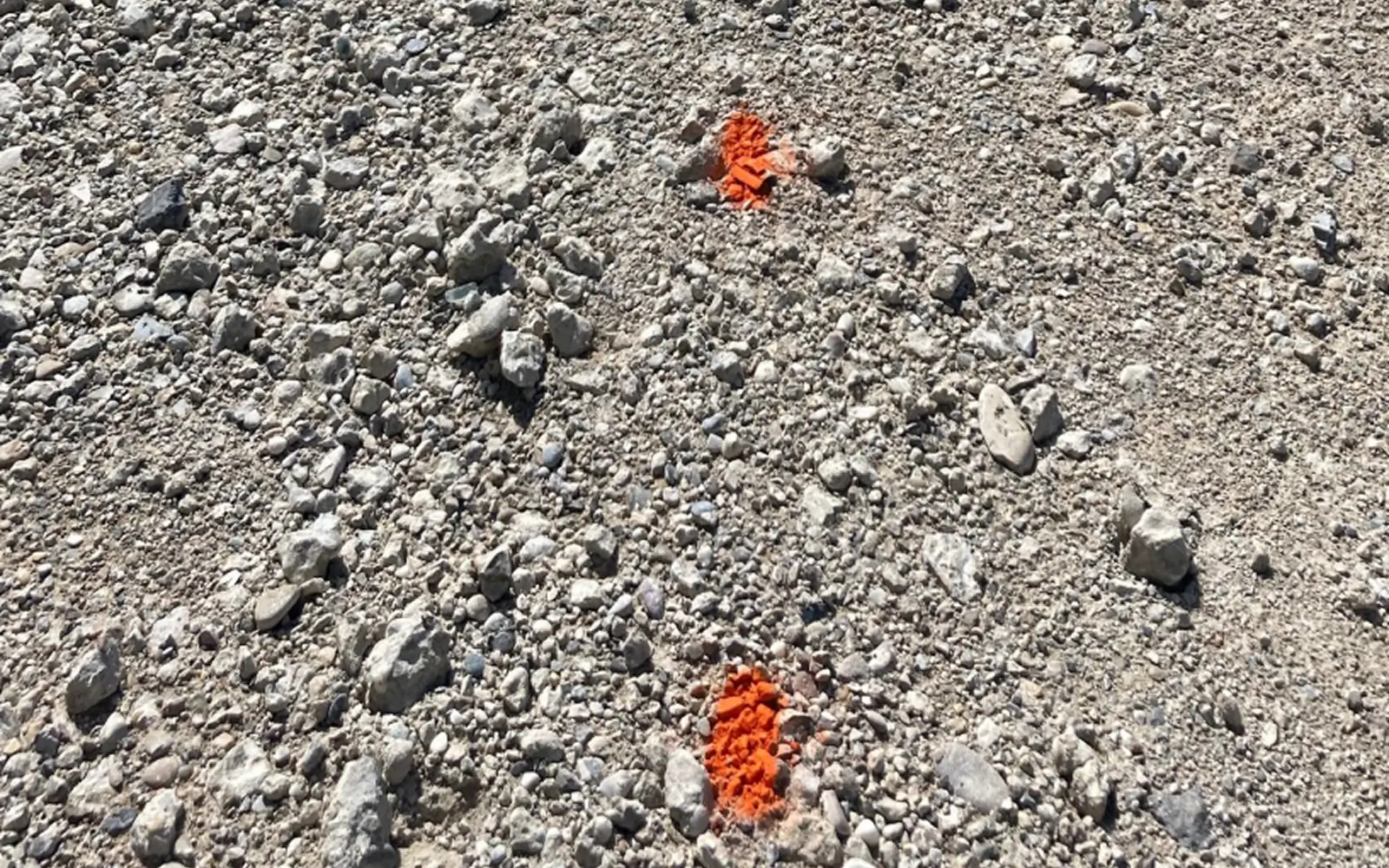

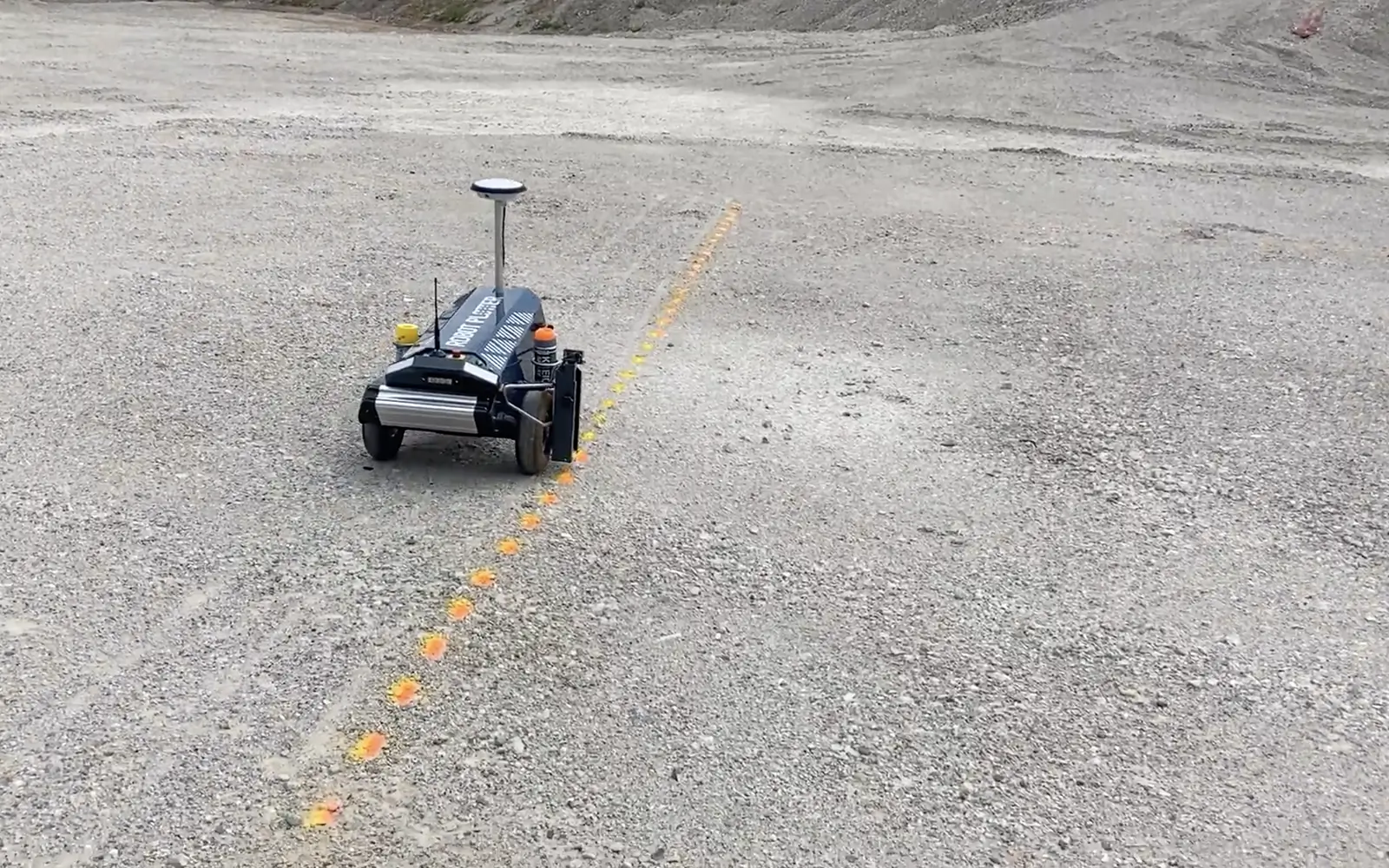

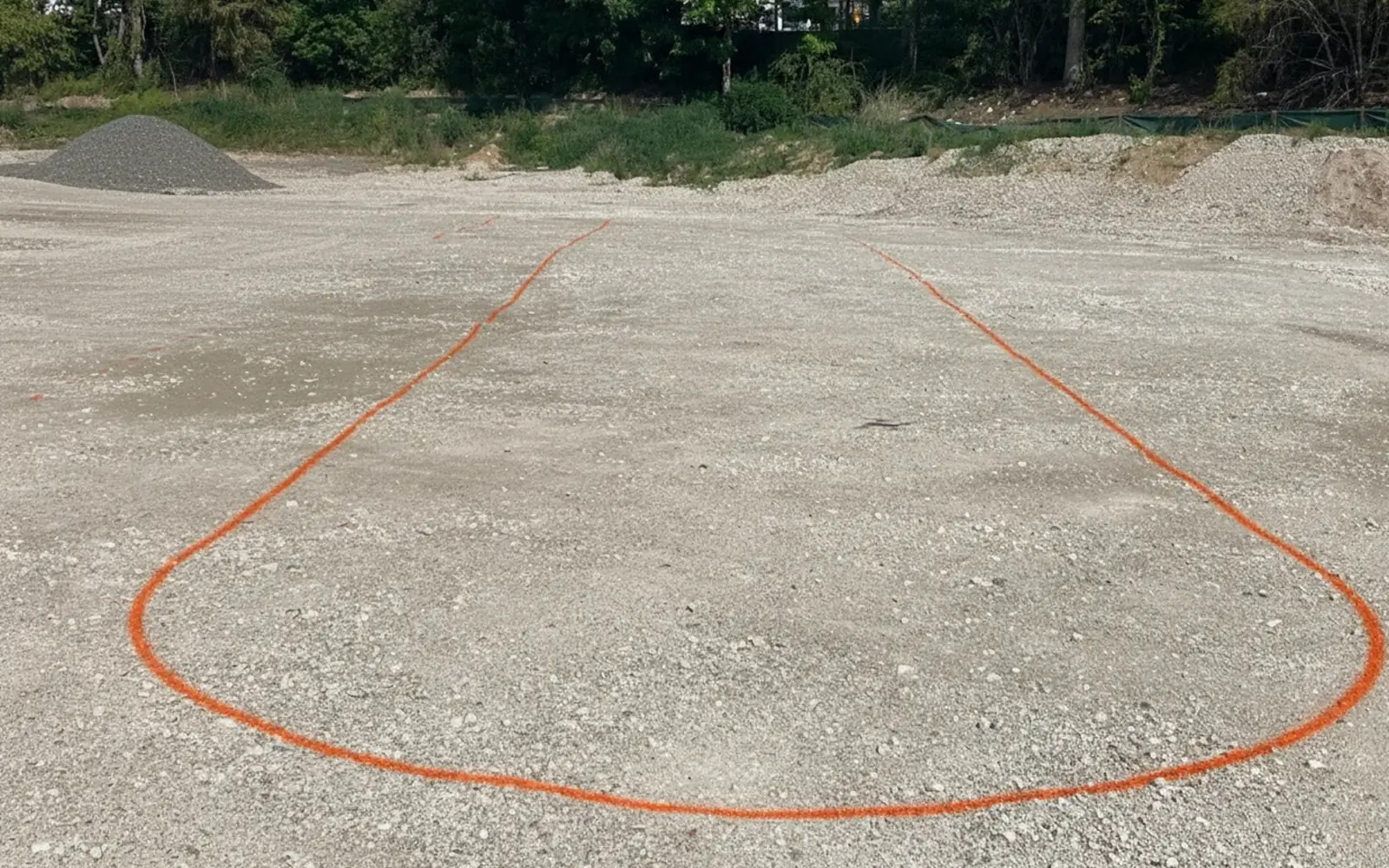

- Marking Method: Spray-applied pre-marking lines
- Application: Pre-marking on asphalt/road paving surfaces
- Control/Positioning: RTK-GNSS or Total Station
- Data Input: Digital drawings via Tyker Civil (web app) or USB
- Productivity: 12–16× faster than traditional 3–4-person crews
- Safety: Operator can work at a safe distance from traffic/work area
- Transport: Fits in the trunk of a small car; can be carried by one person
- Live Monitoring: Real-time robot location and job progress (via Tyker Civil)
- Optional Modules: Drilling module for holes in concrete (optional)
Precise Marking and Cutting
The Robot Plotter enables high-precision marking, cutting, and engraving on a wide range of materials — from films and cardboard to fabrics and leather. Ideal for professional applications in advertising, design, and production.
Intelligent Control
With an advanced control system and user-friendly software, the plotter operates efficiently and reliably. It supports multiple file formats and ensures the accurate execution of even complex patterns.
High Compatibility
The Robot Plotter is compatible with popular design programs and can be easily integrated into existing production workflows, ensuring a seamless and productive process.
Durable Design
Featuring a robust housing, precision guide rails, and high-quality components, the plotter is built for long-term, intensive use — delivering consistent quality and performance over time.
Shipping & Logistics
- Shipping from stock (DE): DPD / DHL / UPS
- Germany: 1–3 business days; EU: 3–7 business days.
- Worldwide: on request — we will calculate the optimal rate and delivery time.
- Free of charge: For orders of 2 or more robots within Germany and the EU, we cover the shipping costs.
- Self-pickup: possible by arrangement.
General Rental Terms
- Services are available only to legal entities (business customers).
- Minimum rental period is 1 day.
- Robot rental is possible with an operator (optional add-on) or without.
- Venue: indoors or — given suitable weather conditions — outdoors.
- Project service (project support): from €100/hour (on request).
- Delivery: Germany 1–3 business days; EU 3–7 business days; worldwide — on request.
What technologies are used in the Robot Plotter?
The Robot Plotter is designed for autonomous pre-marking on construction sites. It uses high-precision RTK-GNSS for exact positioning and is optionally compatible with total stations for alternative site configurations. For marking, it features a powerful color spray module. Optionally, a drilling module can be integrated, allowing holes up to 15 cm deep - for example, for preparing foundation piles or reference points. The robot follows preloaded digital plans for precise pre-marking. These plans are uploaded in DXF format via the Tyker Civil Web App, enabling real-time monitoring and progress tracking during operation.
What speed does the Robot Plotter use for pre-marking?
The Robot Plotter operates at a typical walking speed (approx. 3–5 km/h), making it ideal for accurate pre-marking on parking lots, roads, and construction areas. For more complex patterns, the robot automatically reduces speed to ensure maximum precision.
Which file formats does the Tyker Robot Plotter support for uploading drawings?
The Robot Plotter supports DXF files - the most common format for digital construction drawings, CAD plans, and layouts in the construction and infrastructure sectors. Based on these files, the robot executes precise pre-markings fully automatically according to plan.
How long does the robot operate on a single battery charge, and how is it charged?
Depending on workload and use case, the marking robot operates for about 6 to 8 hours per battery charge. It uses a standard charger that fully recharges the battery in around 3 hours. The battery is easily swappable - similar to e-bikes - allowing quick replacement to minimize downtime on site.
How big is the robot, and how can it be transported?
The Robot Plotter is compact and portable: with dimensions of 90 × 63 × 44 cm and a weight of only 21 kg, it fits easily into the trunk of a small car. This makes it ideal for flexible use at multiple job sites such as construction areas, parking lots, and exhibition grounds.
Overview
The Robot Plotter is a compact, autonomous marking robot designed for precise pre-markings on construction sites, roads, parking lots, and industrial surfaces. Equipped with RTK-GPS or a total station, it achieves an accuracy of up to ±0.5 cm, effectively replacing several manual workers.
With intelligent control, web app connectivity, and a replaceable battery providing up to 8 hours of operation, the Robot Plotter works efficiently, with repeatable precision, and fully autonomously – both indoors and outdoors.
Applications:
-
Construction sites
-
Parking lots
-
Industrial and warehouse areas
-
Sports and event venues
-
Road and lane markings
-
Airports
Technical Data
- Dimensions: 900 × 630 × 440 mm
- Weight: 21 kg
- Marking Method: Spray-applied pre-marking lines
- Application: Pre-marking on asphalt/road paving surfaces
- Control/Positioning: RTK-GNSS or Total Station
- Data Input: Digital drawings via Tyker Civil (web app) or USB
- Productivity: 12–16× faster than traditional 3–4-person crews
- Safety: Operator can work at a safe distance from traffic/work area
- Transport: Fits in the trunk of a small car; can be carried by one person
- Live Monitoring: Real-time robot location and job progress (via Tyker Civil)
- Optional Modules: Drilling module for holes in concrete (optional)
Features
Precise Marking and Cutting
The Robot Plotter enables high-precision marking, cutting, and engraving on a wide range of materials — from films and cardboard to fabrics and leather. Ideal for professional applications in advertising, design, and production.
Intelligent Control
With an advanced control system and user-friendly software, the plotter operates efficiently and reliably. It supports multiple file formats and ensures the accurate execution of even complex patterns.
High Compatibility
The Robot Plotter is compatible with popular design programs and can be easily integrated into existing production workflows, ensuring a seamless and productive process.
Durable Design
Featuring a robust housing, precision guide rails, and high-quality components, the plotter is built for long-term, intensive use — delivering consistent quality and performance over time.
Warranty & Support
Shipping & Logistics
- Shipping from stock (DE): DPD / DHL / UPS
- Germany: 1–3 business days; EU: 3–7 business days.
- Worldwide: on request — we will calculate the optimal rate and delivery time.
- Free of charge: For orders of 2 or more robots within Germany and the EU, we cover the shipping costs.
- Self-pickup: possible by arrangement.
General Rental Terms
- Services are available only to legal entities (business customers).
- Minimum rental period is 1 day.
- Robot rental is possible with an operator (optional add-on) or without.
- Venue: indoors or — given suitable weather conditions — outdoors.
- Project service (project support): from €100/hour (on request).
- Delivery: Germany 1–3 business days; EU 3–7 business days; worldwide — on request.
FAQ
What technologies are used in the Robot Plotter?
The Robot Plotter is designed for autonomous pre-marking on construction sites. It uses high-precision RTK-GNSS for exact positioning and is optionally compatible with total stations for alternative site configurations. For marking, it features a powerful color spray module. Optionally, a drilling module can be integrated, allowing holes up to 15 cm deep - for example, for preparing foundation piles or reference points. The robot follows preloaded digital plans for precise pre-marking. These plans are uploaded in DXF format via the Tyker Civil Web App, enabling real-time monitoring and progress tracking during operation.
What speed does the Robot Plotter use for pre-marking?
The Robot Plotter operates at a typical walking speed (approx. 3–5 km/h), making it ideal for accurate pre-marking on parking lots, roads, and construction areas. For more complex patterns, the robot automatically reduces speed to ensure maximum precision.
Which file formats does the Tyker Robot Plotter support for uploading drawings?
The Robot Plotter supports DXF files - the most common format for digital construction drawings, CAD plans, and layouts in the construction and infrastructure sectors. Based on these files, the robot executes precise pre-markings fully automatically according to plan.
How long does the robot operate on a single battery charge, and how is it charged?
Depending on workload and use case, the marking robot operates for about 6 to 8 hours per battery charge. It uses a standard charger that fully recharges the battery in around 3 hours. The battery is easily swappable - similar to e-bikes - allowing quick replacement to minimize downtime on site.
How big is the robot, and how can it be transported?
The Robot Plotter is compact and portable: with dimensions of 90 × 63 × 44 cm and a weight of only 21 kg, it fits easily into the trunk of a small car. This makes it ideal for flexible use at multiple job sites such as construction areas, parking lots, and exhibition grounds.
