BIMPrinter
The BIMPRINTER is an autonomous full-scale (1:1) layout robot for construction sites, combining multi-color spray marking with laser engraving to deliver 2 mm accuracy – fast execution, fewer errors, and reliable results on concrete, screed, or uneven surfaces.
- Manufacturer: BIMPRINTER
- Charging station: incl. charging station
- Location: Finland (in stock), Stuttgart (in stock)
- Delivery: Collection, Shipping
The BIMPRINTER is a compact, autonomous full-scale (1:1) layout robot for construction. It combines multi-color spray marking with laser engraving to deliver ±2 mm accuracy – perfect for floor plans, axes, and detailed on-site annotations. Easy to operate, fast to execute, and dependable even on rough or uneven surfaces. Suitable for indoor and outdoor use (e.g., concrete, screed, roofing).
Applications:
-
Concrete works & structural shell
-
Sanitary & heating (MEP) installations
-
Structural & civil engineering
-
Manufacturing & industrial warehousing
-
Drywall
-
Residential housing
-
Core drilling, piping & cable lines
-
1:1 markings, numbers, letters, symbols
- System Type: Mobile full-scale (1:1) layout / topographic printer.
- Marking Method: Fluorescent spray marking (up to 3 colors) + laser engraving.
- Accuracy: up to ±2 mm.
- Scale: 1:1 (true-to-scale).
- Operating Modes: Fully automatic & semi-automatic (operator-guided)
- Survey Integration: Compatible with robotic total stations (incl. Leica, Topcon, Trimble)
- Control & Software: External device (tablet/PC/smartphone) + mission/piloting software
- Connectivity: Mobile Wi-Fi access point for robot/survey link
- Typical Surfaces: Concrete, screed; dependable on rough/uneven floors
- Printed Content: Floor plans, axes, numbers/letters/symbols
- Quality Control: Automatic & systematic QC during/after missions
- Jobsite Use: Adapted to real construction sites (shell work, interiors, MEP layout)
Precision Full-Scale Marking
Multi-color spray (up to three colors) combined with laser engraving delivers ±2 mm accuracy directly on slabs—perfect for floor plans, axes, plus numbers, letters, and symbols.
Efficient Workflow & Easy Operation
Fast mission execution and an intuitive interface minimize errors and speed up hand-offs to subsequent trades.
Versatile Surfaces & Use Cases
Consistent results on concrete, screed, and roofing; capable on rough or uneven surfaces—covering shell work, drywall, MEP installations, and core drilling layouts.
Integration & Services
True-to-scale 1:1 output, compatible with surveying setups (including total station rental), plus options to purchase, rent, or book a marking service via the BauMotor team.
Shipping & Logistics
-
Shipping from stock (DE): DPD / DHL / UPS
-
Germany: 1–3 business days; EU: 3–7 business days.
-
Worldwide: on request — we will calculate the optimal rate and delivery time.
-
Free of charge: For orders of 2 or more robots within Germany and the EU, we cover the shipping costs.
-
Self-pickup: possible by arrangement.
General Rental Terms
-
Services are available only to legal entities (business customers).
-
Minimum rental period is 1 day.
-
Robot rental is possible with an operator (optional add-on) or without.
-
Venue: indoors or — given suitable weather conditions — outdoors.
-
Project service (project support): from €100/hour (on request).
-
Delivery: Germany 1–3 business days; EU 3–7 business days; worldwide — on request.
What is the BIMPRINTER and what is it used for?
BIMPRINTER is a mobile full-scale (1:1) layout robot that prints floor plans and design data directly onto slabs—ideal for shell construction, interiors, and MEP axes. It combines spray marking with laser engraving for precise lines.
What accuracy does the BIMPRINTER achieve?
It delivers up to ±2 mm accuracy by combining fluorescent paint with laser engraving and tightly integrating with surveying.
How does the system work in practice?

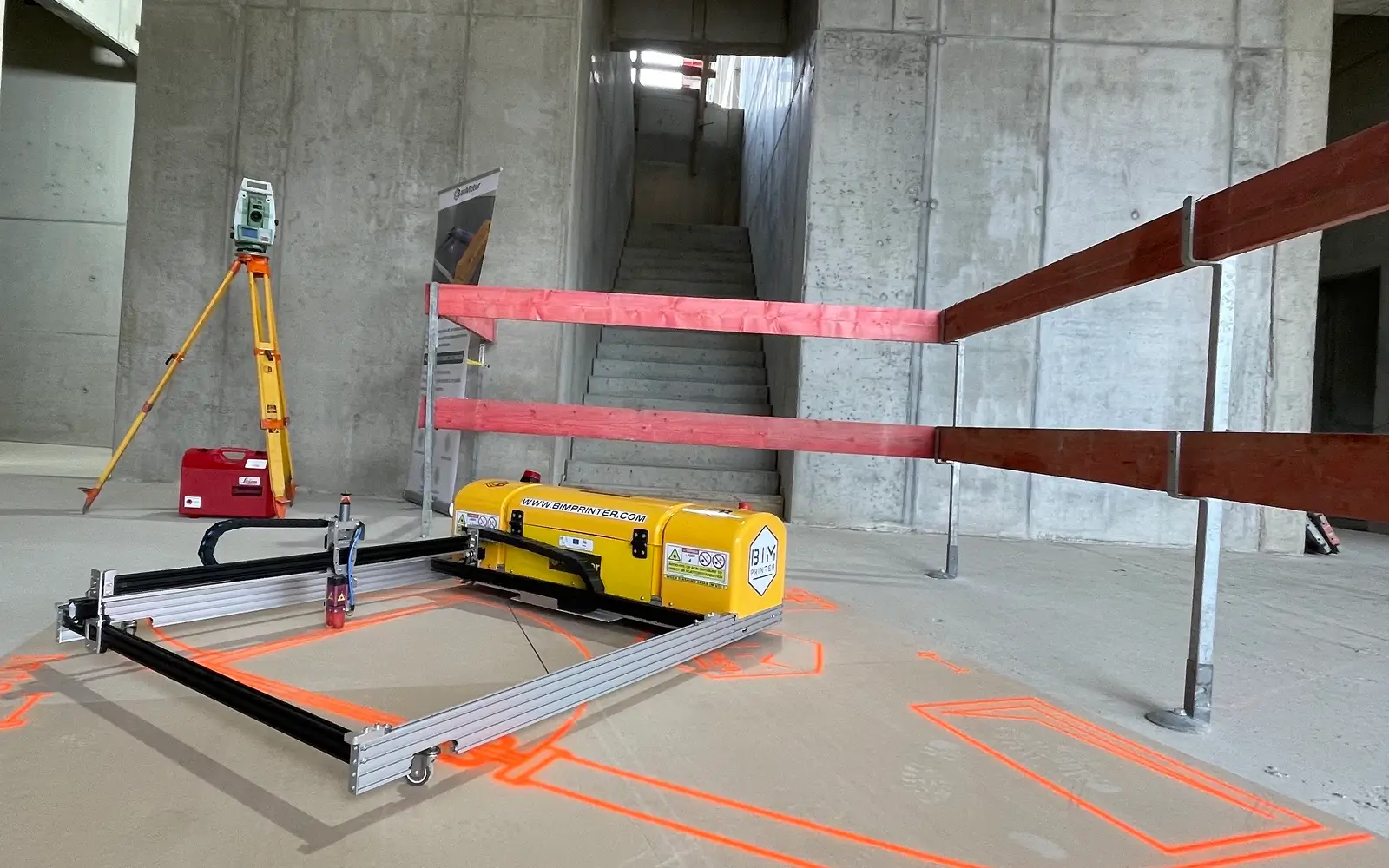

It uses a mobile robot, a robotic total station, an external device (tablet/PC/smartphone), dedicated mission-planning software, and a mobile Wi-Fi access point.
Are there different operating modes?
Yes—fully automatic (the robot follows the prepared mission autonomously) and semi-automatic (the operator drives the robot to print at chosen spots).
Which surveying solutions is it compatible with?
It’s compatible with major robotic total station brands (e.g., Leica, Topcon, Trimble) to ensure reliable on-site references.
Which surfaces and materials can be printed on?
Common use on concrete and screed; the robot prints 1:1 layouts, axes, numbers, letters, and symbols directly on the surface.
What are the key benefits versus manual layout?
Fewer reading/transfer errors, crystal-clear 1:1 visualization of partitions/walls, and faster hand-offs to downstream trades.
How is quality control handled?
BIMPRINTER features automatic and systematic quality control to validate mission execution and outcomes.
Is the solution adapted to real jobsite conditions?
Yes, it’s a 1:1 mobile topographic printer specifically adapted to real construction sites for direct slab tracing.
What services does BauMotor offer around BIMPRINTER?
BauMotor is an official partner and provides guidance on applications, benefits, and integration into surveying/marking workflows on site.
Overview
The BIMPRINTER is a compact, autonomous full-scale (1:1) layout robot for construction. It combines multi-color spray marking with laser engraving to deliver ±2 mm accuracy – perfect for floor plans, axes, and detailed on-site annotations. Easy to operate, fast to execute, and dependable even on rough or uneven surfaces. Suitable for indoor and outdoor use (e.g., concrete, screed, roofing).
Applications:
-
Concrete works & structural shell
-
Sanitary & heating (MEP) installations
-
Structural & civil engineering
-
Manufacturing & industrial warehousing
-
Drywall
-
Residential housing
-
Core drilling, piping & cable lines
-
1:1 markings, numbers, letters, symbols
Technical Data
- System Type: Mobile full-scale (1:1) layout / topographic printer.
- Marking Method: Fluorescent spray marking (up to 3 colors) + laser engraving.
- Accuracy: up to ±2 mm.
- Scale: 1:1 (true-to-scale).
- Operating Modes: Fully automatic & semi-automatic (operator-guided)
- Survey Integration: Compatible with robotic total stations (incl. Leica, Topcon, Trimble)
- Control & Software: External device (tablet/PC/smartphone) + mission/piloting software
- Connectivity: Mobile Wi-Fi access point for robot/survey link
- Typical Surfaces: Concrete, screed; dependable on rough/uneven floors
- Printed Content: Floor plans, axes, numbers/letters/symbols
- Quality Control: Automatic & systematic QC during/after missions
- Jobsite Use: Adapted to real construction sites (shell work, interiors, MEP layout)
Features
Precision Full-Scale Marking
Multi-color spray (up to three colors) combined with laser engraving delivers ±2 mm accuracy directly on slabs—perfect for floor plans, axes, plus numbers, letters, and symbols.
Efficient Workflow & Easy Operation
Fast mission execution and an intuitive interface minimize errors and speed up hand-offs to subsequent trades.
Versatile Surfaces & Use Cases
Consistent results on concrete, screed, and roofing; capable on rough or uneven surfaces—covering shell work, drywall, MEP installations, and core drilling layouts.
Integration & Services
True-to-scale 1:1 output, compatible with surveying setups (including total station rental), plus options to purchase, rent, or book a marking service via the BauMotor team.
Warranty & Support
Shipping & Logistics
-
Shipping from stock (DE): DPD / DHL / UPS
-
Germany: 1–3 business days; EU: 3–7 business days.
-
Worldwide: on request — we will calculate the optimal rate and delivery time.
-
Free of charge: For orders of 2 or more robots within Germany and the EU, we cover the shipping costs.
-
Self-pickup: possible by arrangement.
General Rental Terms
-
Services are available only to legal entities (business customers).
-
Minimum rental period is 1 day.
-
Robot rental is possible with an operator (optional add-on) or without.
-
Venue: indoors or — given suitable weather conditions — outdoors.
-
Project service (project support): from €100/hour (on request).
-
Delivery: Germany 1–3 business days; EU 3–7 business days; worldwide — on request.
FAQ
What is the BIMPRINTER and what is it used for?
BIMPRINTER is a mobile full-scale (1:1) layout robot that prints floor plans and design data directly onto slabs—ideal for shell construction, interiors, and MEP axes. It combines spray marking with laser engraving for precise lines.
What accuracy does the BIMPRINTER achieve?
It delivers up to ±2 mm accuracy by combining fluorescent paint with laser engraving and tightly integrating with surveying.
How does the system work in practice?
It uses a mobile robot, a robotic total station, an external device (tablet/PC/smartphone), dedicated mission-planning software, and a mobile Wi-Fi access point.
Are there different operating modes?
Yes—fully automatic (the robot follows the prepared mission autonomously) and semi-automatic (the operator drives the robot to print at chosen spots).
Which surveying solutions is it compatible with?
It’s compatible with major robotic total station brands (e.g., Leica, Topcon, Trimble) to ensure reliable on-site references.
Which surfaces and materials can be printed on?
Common use on concrete and screed; the robot prints 1:1 layouts, axes, numbers, letters, and symbols directly on the surface.
What are the key benefits versus manual layout?
Fewer reading/transfer errors, crystal-clear 1:1 visualization of partitions/walls, and faster hand-offs to downstream trades.
How is quality control handled?
BIMPRINTER features automatic and systematic quality control to validate mission execution and outcomes.
Is the solution adapted to real jobsite conditions?
Yes, it’s a 1:1 mobile topographic printer specifically adapted to real construction sites for direct slab tracing.
What services does BauMotor offer around BIMPRINTER?
BauMotor is an official partner and provides guidance on applications, benefits, and integration into surveying/marking workflows on site.
